teltonika

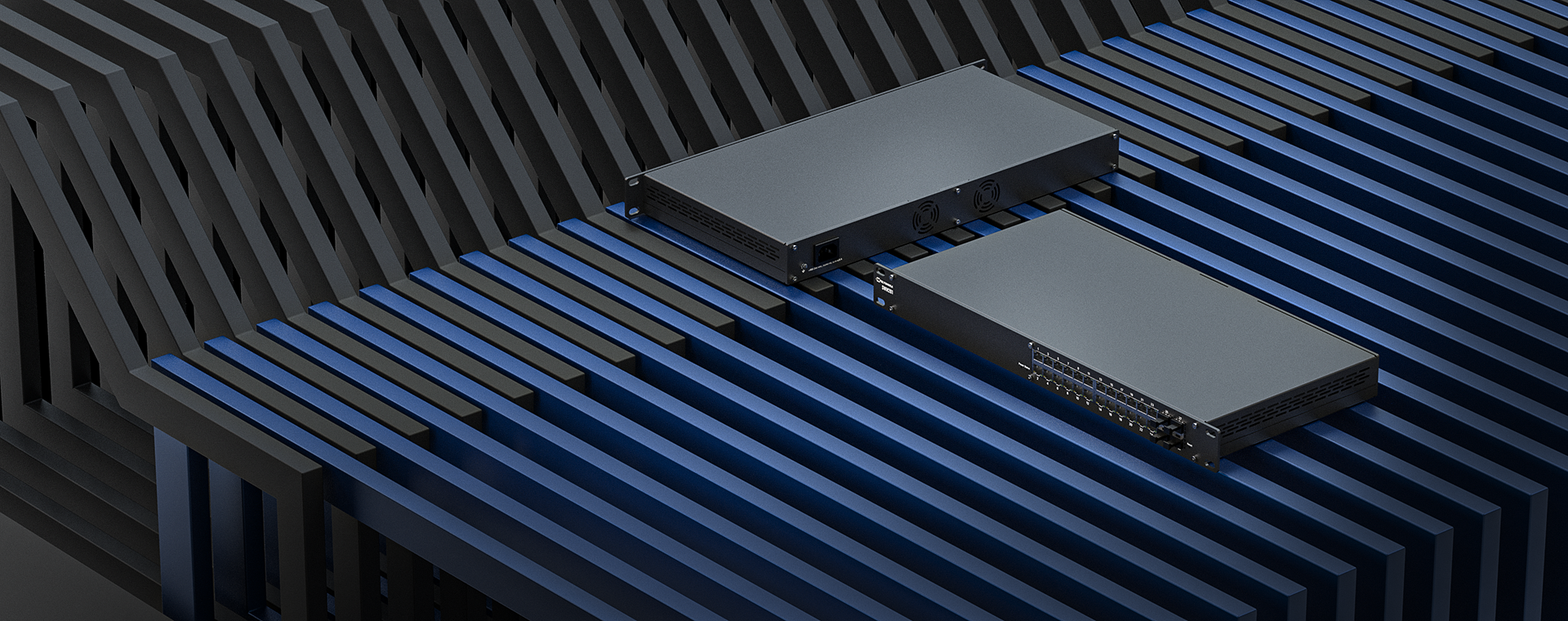

SWM281

MPNSWM281
ProcessorRealtek
OSLinux
Weight4.1 lb

Specifications 59 normalized

Processor
Processor
Realtek, 500 MHz, MIPS-4KEc
Memory & storage
Memory
128 MB, DDR3
FLASH storage
16 MB serial flash
Connectivity
Ether Net/IP
Yes
Networking
24 x RJ45 ports, 10/100/1000 Mbps
Network Management
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
Port aggregation
802.3ad (LACP)
Port Settings
Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation:
Physical Interfaces: Fiber
4 x SFP ports
Power & battery
Power Consumption
Idle: 5.5 W / Max: 20 W
Power
1 x C14 connector
Physical & build
Weight
1853 g
Dimensions (W x H x D)
483 x 44 x 234 mm
MAC address table size
8K entries
Casing material
Anodised aluminium housing and panels
Operating system & software
Operating System
SwmOS (OpenWrt based Linux OS)
Warranty & support
MAC filtering support
Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected
Supported languages
Busybox shell, Lua, C, C++
Jumbo frame support
10000 bytes
Other
Fiber
4 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad
ETH
Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Profinet
Profinet Class B conformance (available with optional order code)
SNMP V2, V3
Yes
LLDP
Yes
Routing
Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP)
MRP
MRP client role, MRP manager role
L2 features
Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Multicast
IGMP snooping, multicast querier support
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
QOS
Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method
SP/WFQ/WRR
Bandwidth control
Rate limiting, storm control
Traffic Shaper
Port-based shaping
Tools
Cable diagnostic, ping, traceroute, nslookup
Authentication
PAM — preshared key, Radius & TACACS+, IP & login attempts block
VLAN
Port VLAN separation
802.1x
Port-based network access control client and server
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
Development tools
SDK package with build environment provided
Package Manager
The Package Manager is a service used to install additional software on the device
Bandwidth (Non-blocking)
56 Gbps
Forwarding rate
83.33 Mpps
Packet buffer
512 KB
Input voltage range
100-240 VAC, 50/60 Hz
Status LEDs
1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs
Reset
Software reset button
Other
1 x Grounding screw
Mounting options
Rack mounting kit
Operating temperature
0 °C to 50 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
Regulatory
CE, UKCA, CB, RCM, FCC, IC

I/O Ports 3

  • Fiber: 4 x SFP ports
  • ETH: Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
  • Ethernet: 24 x RJ45 ports, 10/100/1000 Mbps
