teltonika

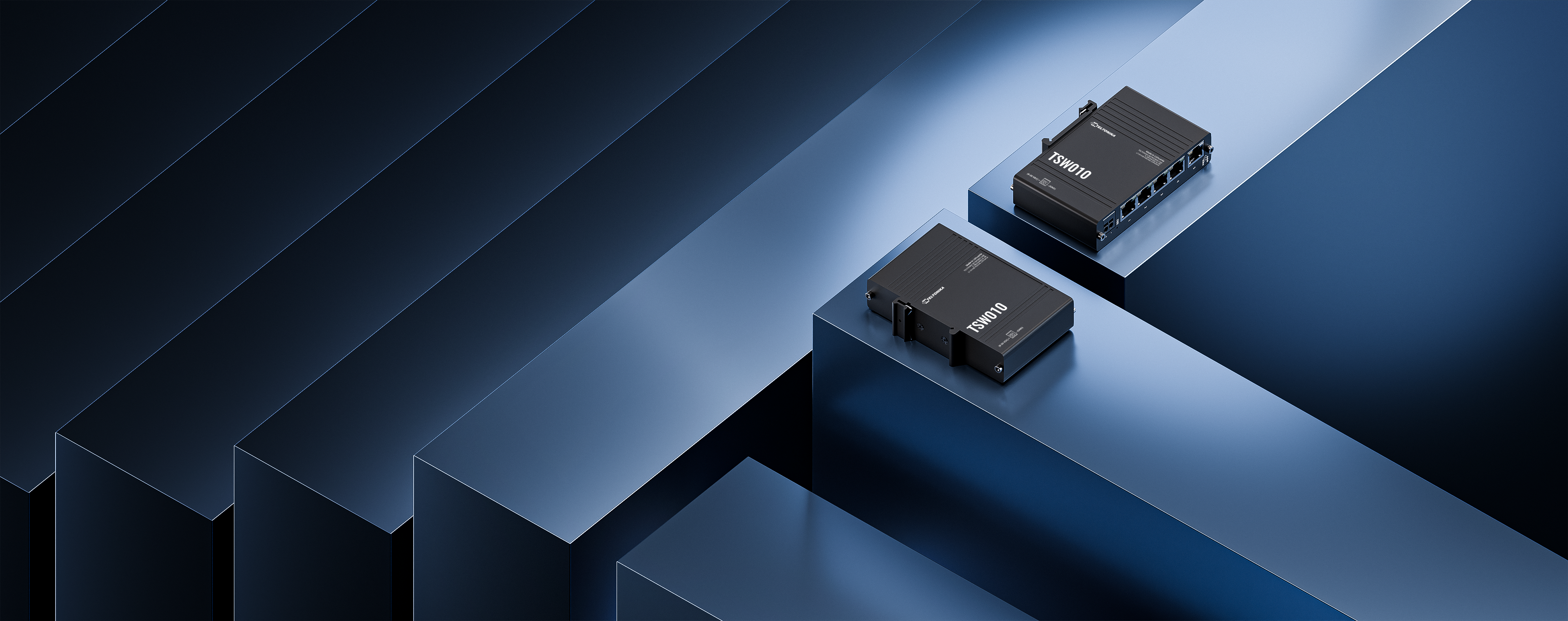

TSW010

MPNTSW010
Weight0.32 lb

Specifications 29 normalized

Connectivity
Networking
5 x RJ45 ports, 10/100 Mbps
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
Power & battery
Power: Input voltage range
12-40 VAC (50/60 Hz), reverse polarity protection, voltage surge/transient protection
Power Consumption
Idle: 0.3 W / Max: 0.9 W
Power
1 x 2-pin industrial DC power socket
Physical & build
Weight
146.5 g
Dimensions (W x H x D)
113.1 x 27.4 x 80.5 mm
MAC address table size
2K entries
Casing material
Anodised aluminium housing and panels
Warranty & support
Jumbo frame support
2048 bytes
Other
ETH
5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3x, 802.3az
Profinet
Profinet Class A conformance (available with optional order code)
Bandwidth (Non-blocking)
1 Gbps
Input voltage range
9 – 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)
Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Mounting options
Integrated DIN rail bracket
wall mount and flat surface (additional kit needed)
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Regulatory
CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya, REACH, RoHS, WEEE, UL Safety, MTCTE
Standards
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
CS
EN 61000-4-6:2014
Safety: Standards
CE: EN IEC 62368-1:2020 + A11:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
Safety (Ordinary Locations): Standards
UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

I/O Ports 2

  • ETH: 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover
  • Ethernet: 5 x RJ45 ports, 10/100 Mbps
