teltonika

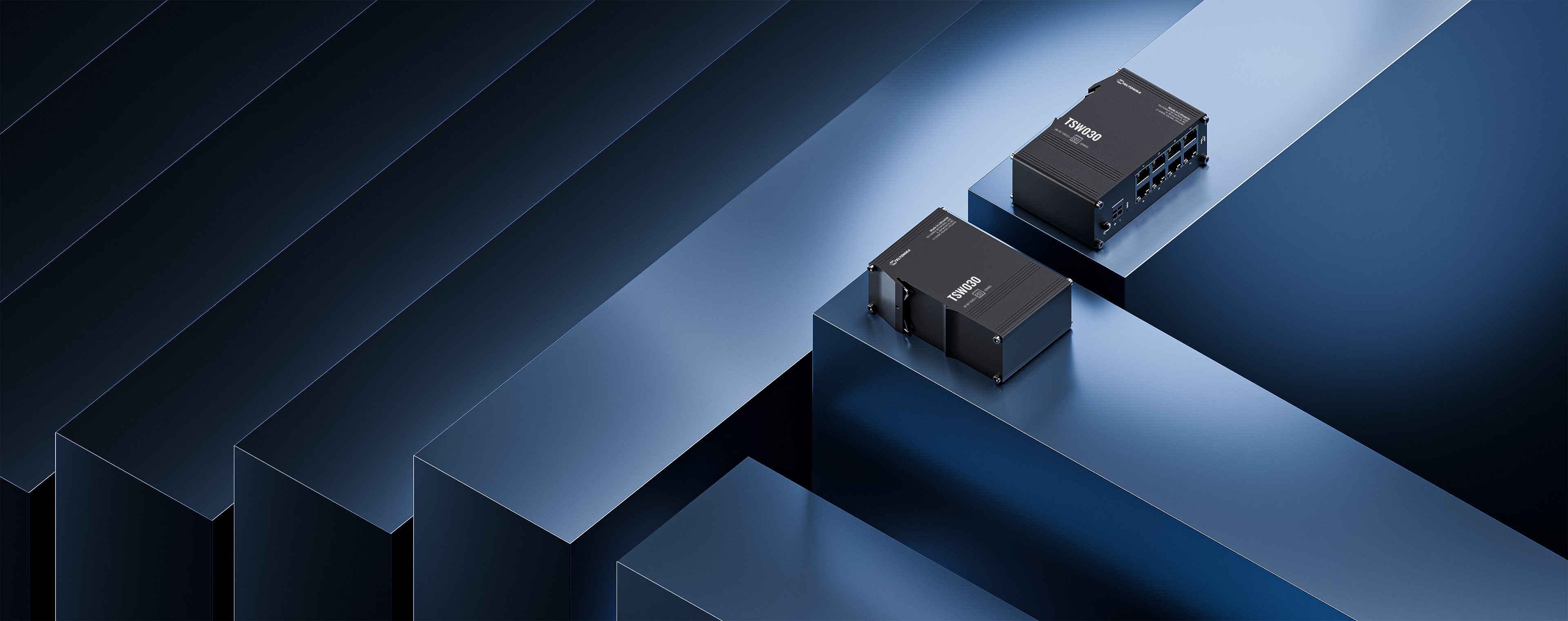

TSW030

MPNTSW030
Weight0.56 lb

Specifications 22 normalized

Connectivity
Networking
8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
Physical Interfaces: Ethernet
8 x RJ45 ports, 10/100 Mbps
Power & battery
Power Consumption
Idle: 0.5 W / Max: 1.5 W
Power
1 x 2-pin industrial DC power socket
Physical & build
Weight
256 g
Dimensions (W x H x D)
113.1 x 41.2 x 74.6 mm
MAC address table size
2K entries
Casing material
Anodised aluminium housing and panels
Warranty & support
Jumbo frame support
9216 bytes
Other
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Profinet
Profinet Class A conformance (available with optional order code)
Bandwidth (Non-blocking)
20 Gbps
Packer buffer
128 KB
Input voltage range
7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
Status LEDs
1 x Power LED, 16 x ETH status LEDs
Other
1 x Grounding screw
Mounting options
Integrated DIN rail bracket
wall mount and flat surface (additional kit needed)
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Regulatory
CE, UKCA, EAC, E-mark, FCC, ISED (IC), NOM, NYCE, RCM, REACH, RoHS, WEEE, CB, UL/CSA Safety, MTCTE
Standards
UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

I/O Ports 2

  • Ethernet: 8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
  • Ethernet: 8 x RJ45 ports, 10/100 Mbps
