teltonika

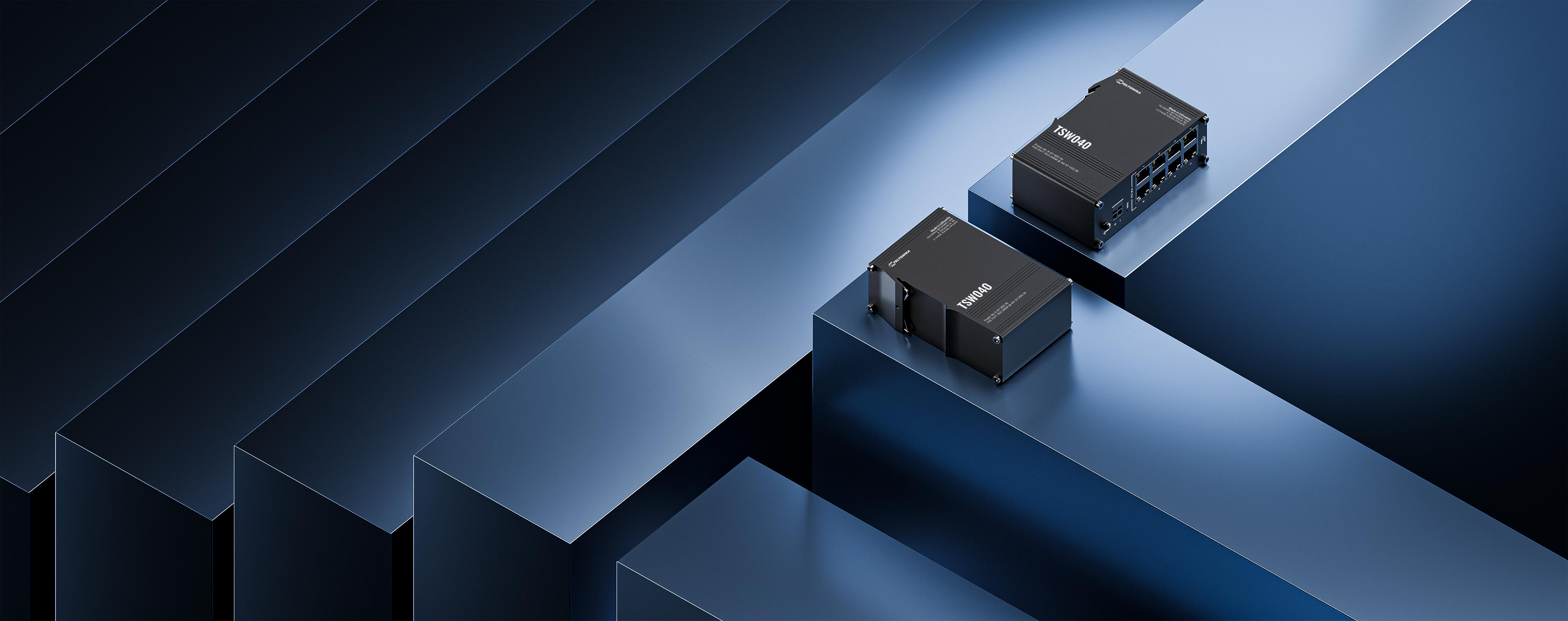

TSW040

MPNTSW040
Weight0.62 lb

Specifications 26 normalized

Connectivity
Networking
8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
Physical Interfaces: Ethernet
8 x RJ45 ports, 10/100 Mbps
PoE Max Power per Port (at PSE)
30 W
PoE+ ports
Port 1 - 8
Power & battery
Total PoE Power Budget (at PSE)
240 W
Power Consumption
Idle: 1 W / Max: 2 W / PoE Max: 246 W
Power
1 x 2-pin industrial DC power socket
Physical & build
Weight
280 g
Dimensions (W x H x D)
113.1 x 41.2 x 74.6 mm
MAC address table size
2K entries
Casing material
Anodised aluminium housing and panels
Warranty & support
Jumbo frame support
9216 bytes
Other
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Profinet
Profinet Class A conformance (available with optional order code)
PoE standards
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2) compliant PSE ports, over spare pairs (Mode B)
Bandwidth (Non-blocking)
20 Gbps
Packer buffer
128 KB
Input voltage range
7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
PoE-Out input voltage range
44 – 57 VDC
Status LEDs
1 x Power LED, 16 x ETH status LEDs
Other
1 x Grounding screw
Regulatory
CE, UKCA, FCC, ISED (IC), RCM, CB, REACH, RoHS, WEEE, MTCTE
Mounting options
Integrated DIN rail bracket
wall mount and flat surface (additional kit needed)
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30

I/O Ports 2

  • Ethernet: 8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
  • Ethernet: 8 x RJ45 ports, 10/100 Mbps
