Teltonika Networks

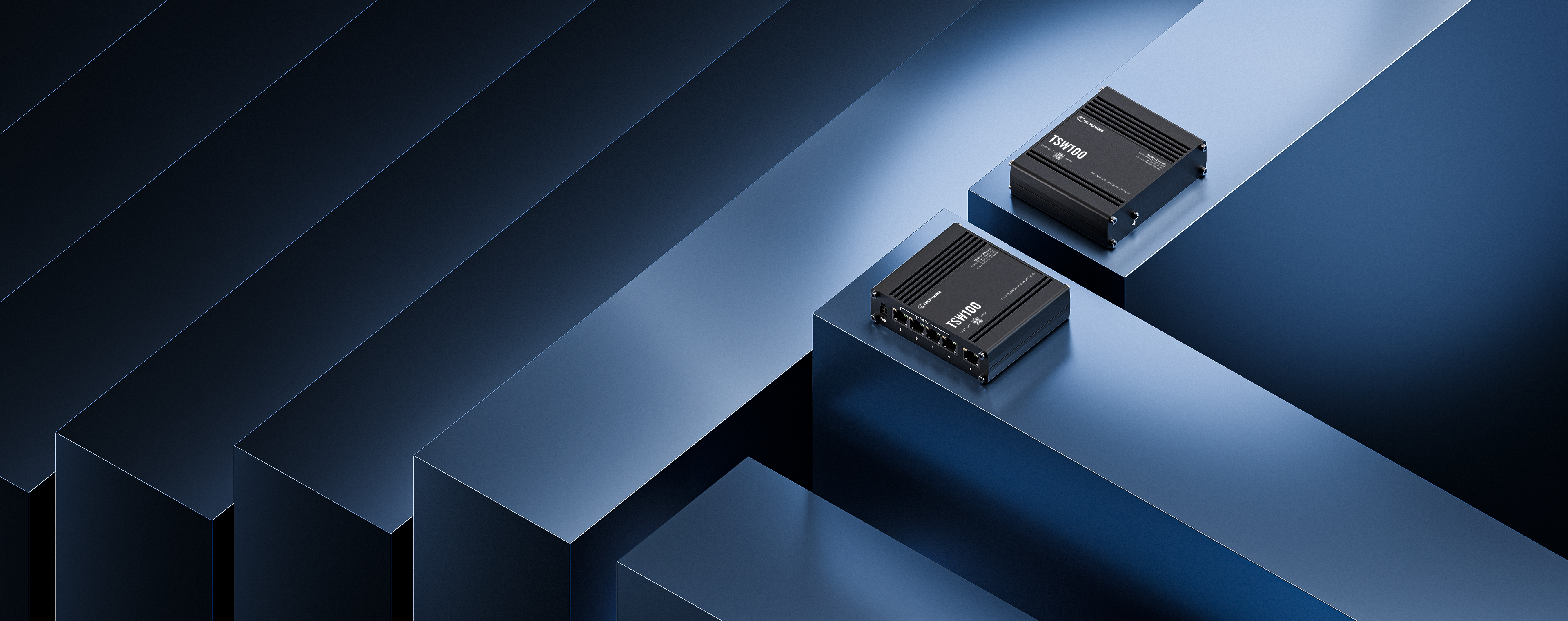

TSW100

MPNTSW100
Weight0.77 lb

Specifications 34 normalized

Connectivity
Networking
5 x RJ45 ports, 10/100/1000 Mbps
PoE Max Power per Port (at PSE)
30 W
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014
PoE+ ports
Port 1 - 4
Power & battery
PoE Power Budget (at PSE)
120 W
Power Consumption
Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W
Power
1 x 4-pin power connector
Physical & build
Weight
350 g
Dimensions (W x H x D)
115 x 32.2 x 101.2 mm
MAC address table size
2K entries
Casing material
Anodised aluminium housing and panels
Warranty & support
Jumbo frame support
9216 bytes
Other
ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Profinet
Profinet Class A conformance (available with optional order code)
PoE standards
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Order code: TSW100 * 1 ****)
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Order code: TSW100 * 0 ****)
Bandwidth (Non-blocking)
10 Gbps
Packer buffer
128 KB
Input voltage range
7 – 57 VDC
PoE-Out input voltage range
44 – 57 VDC
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Other
1 x Grounding screw
Mounting
DIN rail, wall mount, flat surface (all require additional kit)
Operating Temperature
-40 °C to 75 °C
Operating Humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Certifications
CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark, MTCTE
Standards
EN 55032:2015
EN 55035:2017
EN 301 489-1 V2.2.3
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT
EN 61000-4-4:2012
CS
EN 61000-4-6:2014
DIP
EN 61000-4-11:2004
Safety: Standards
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020

I/O Ports 2

  • ETH: 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
  • Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
