teltonika

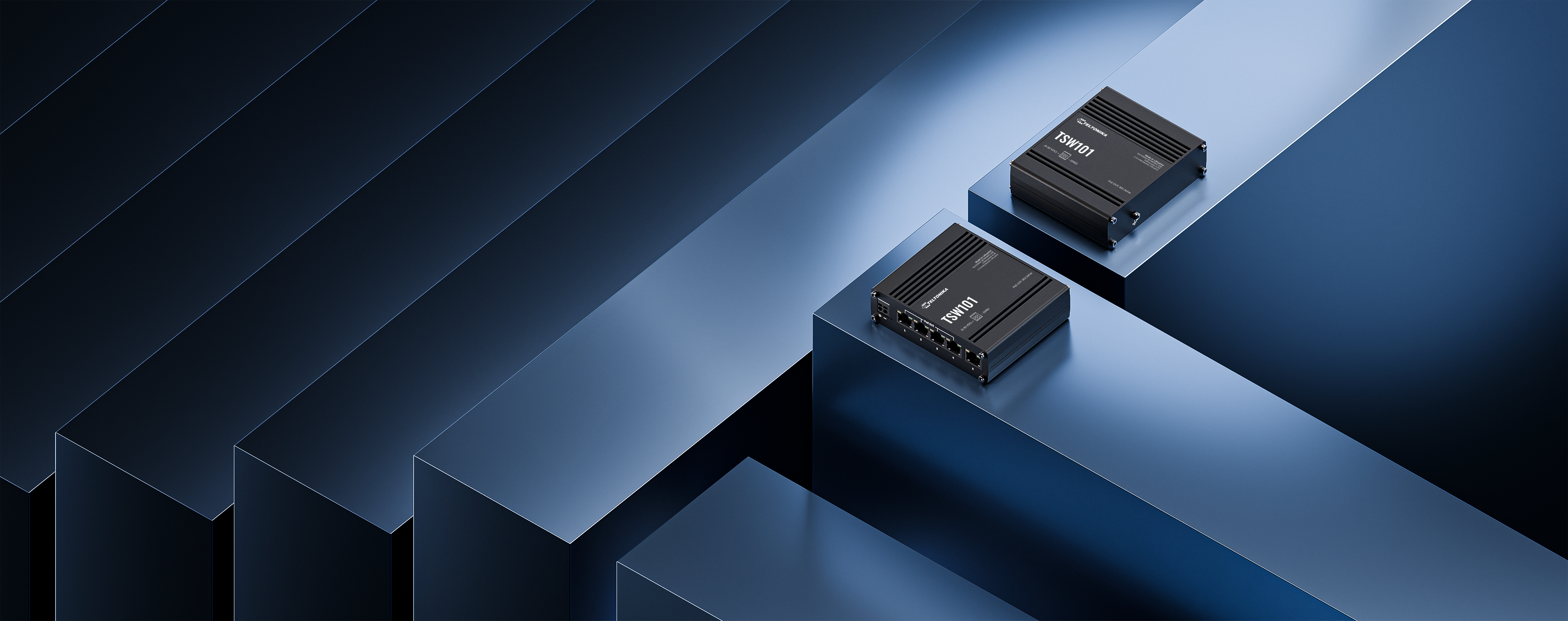

TSW101

MPNTSW101
Weight0.85 lb

Specifications 35 normalized

Connectivity
Maximum Ethernet cable length
100 m
Networking
5 x RJ45 ports, 10/100/1000 Mbps
PoE Max Power per Port (at PSE)
30 W
PoE+ ports
Port 1 - 4
Power & battery
Total PoE Power Budget (at PSE)
60 W
Power Consumption
Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W
PSU
12 V or 24 V car battery-powered. No additional PSU is required.
Power
1 x 2-pin industrial DC power socket
Surge immunity (AC Power Line)
EN 61000-4-5:2014 + A1:2017
Physical & build
Weight
384 g
Dimensions (W x H x D)
115 x 32 x 95 mm
MAC address table size
2K entries
Casing material
Anodised aluminium housing and panels
Warranty & support
Jumbo frame support
9216 bytes
Other
ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Profinet
Profinet Class A conformance (available with optional order code)
PoE standards
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A
Bandwidth (Non-blocking)
10 Gbps
Packer buffer
128 KB
Input voltage range
9 – 30 VDC
PoE-Out input voltage range
9 – 30 VDC
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Other
1 x Grounding screw
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Regulatory
CE, UKCA, FCC, IC, CB, RCM, REACH, RoHS, WEEE, E-Mark, MTCTE
Standards
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
CS
EN 61000-4-6:2014
Safety: Standards
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017
RCM : AS/NZS 62368.1:2022
CB : IEC 62368-1:2018

I/O Ports 2

  • ETH: 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
  • Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
