teltonika

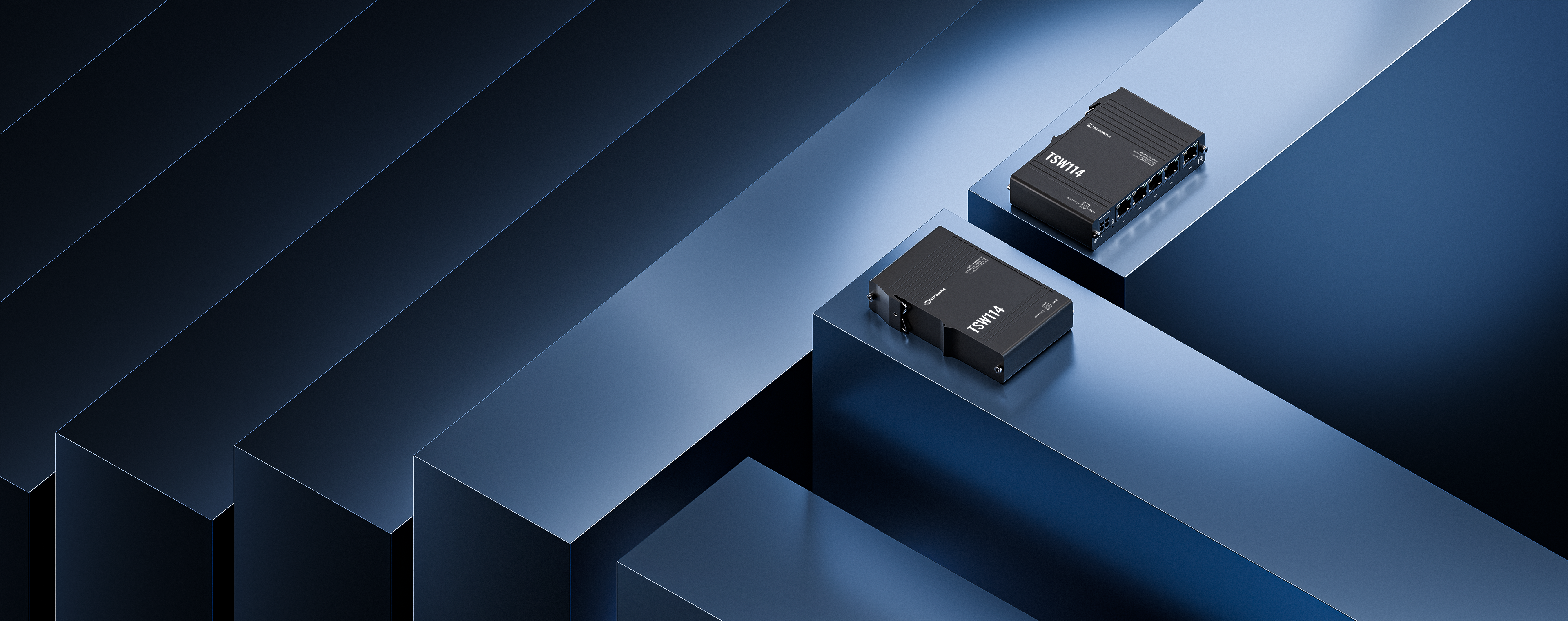

TSW114

MPNTSW114
Weight0.38 lb

Specifications 29 normalized

Connectivity
Networking
5 x RJ45 ports, 10/100/1000 Mbps
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
Power & battery
Power Consumption
Idle: 0.3 W / Max: 2.3 W
Power
1 x 2-pin industrial DC power socket
Physical & build
Weight
174 g
Dimensions (W x H x D)
113.1 x 27.4 x 80.5 mm
MAC address table size
2K entries
Casing material
Anodised aluminium housing and panels
Warranty & support
Jumbo frame support
9216 bytes
Other
ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Profinet
Profinet Class A conformance (available with optional order code)
Bandwidth (Non-blocking)
10 Gbps
Packer buffer
128 KB
Input voltage range
9 – 30 VDC
PoE (passive)
Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Other
1 x Grounding screw
Mounting options
Integrated DIN rail bracket
wall mount and flat surface (additional kit needed)
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Regulatory
CE, UKCA, FCC, IC, CB, RCM, CITC, REACH, RoHS, WEEE, MTCTE
Standards
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
CS
EN 61000-4-6:2014
Safety: Standards
CE : EN IEC 62368-1:2020 + A11:2020
RCM : AS/NZS 62368.1:2022
CB : IEC 62368-1:2018

I/O Ports 2

  • ETH: 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
  • Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
