Teltonika Networks

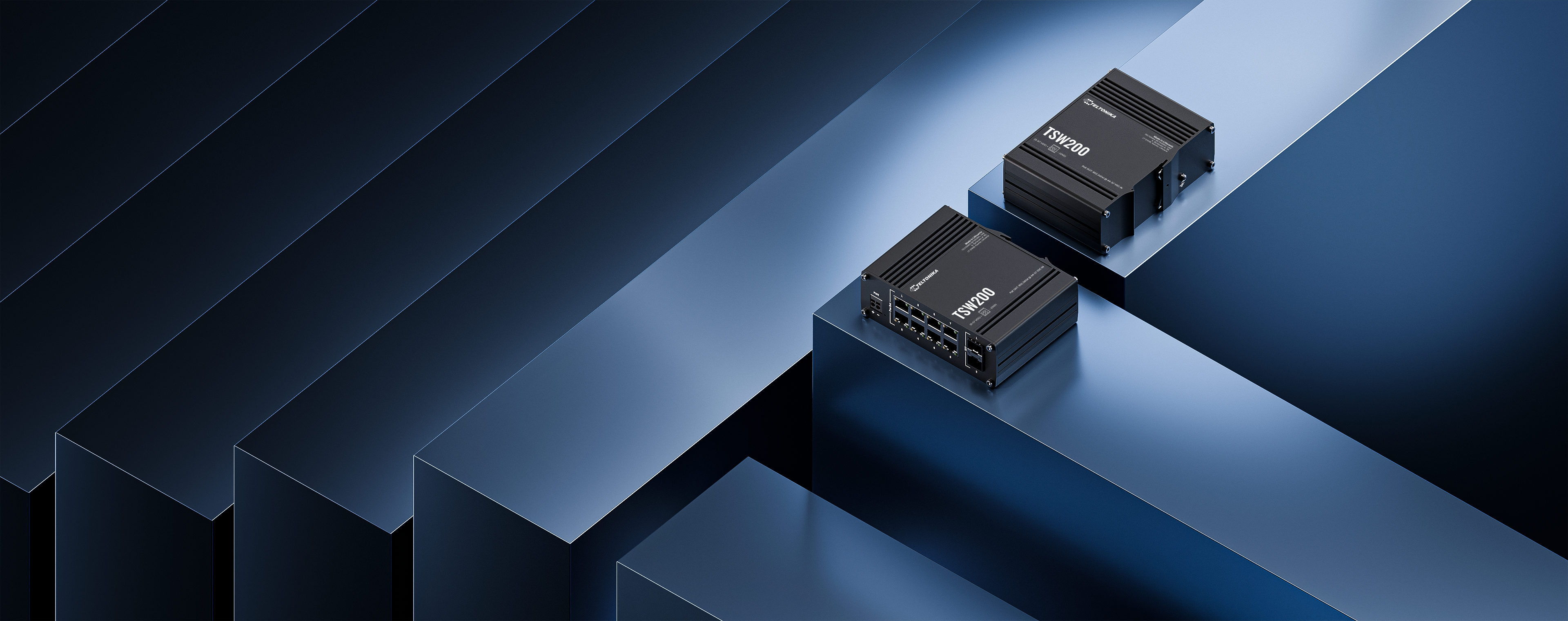

TSW200

MPNTSW200
Weight1.1 lb

Specifications 37 normalized

Connectivity
Networking
8 x RJ45 ports, 10/100/1000 Mbps
PoE Max Power per Port (at PSE)
30 W
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
PoE+ ports
Port 1 - 8
Physical Interfaces: Fibre
2 x SFP ports
Power & battery
Total PoE Power Budget (at PSE)
240 W
Power Consumption
Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W
Power
1 x 2-pin industrial DC power socket
Physical & build
Weight
517 g
Dimensions (W x H x D)
132 x 44.2 x 95.1 mm
MAC address table size
2K entries
Casing material
Anodised aluminium housing and panels
Warranty & support
Jumbo frame support
9216 bytes
Other
ETH
8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3z
Profinet
Profinet Class A conformance (available with optional order code)
PoE standards
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (From batch 42)
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (From batch 1-41)
PoE protection
Short-circuit and overload protection
Bandwidth (Non-blocking)
20 Gbps
Packer buffer
128 KB
Input voltage range
7 – 57 VDC, reverse polarity protection: -80Vmax
PoE-Out input voltage range
44 – 57 VDC
Status LEDs
1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs
Other
1 x Grounding screw
Mounting
Integrated DIN rail bracket
wall mount and flat surface (additional kit needed)
Operating Temperature
-40 °C to 75 °C
Operating Humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Certifications
CE, UKCA, CITC, ANRT, FCC, IC, CB, MTCTE
Standards
EN 55032:2015 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
CS
EN 61000-4-6:2014
DIP
EN IEC 61000-4-11:2020
Safety: Standards
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020

I/O Ports 3

  • ETH: 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
  • Fibre: 2 x SFP ports
  • Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps
