teltonika

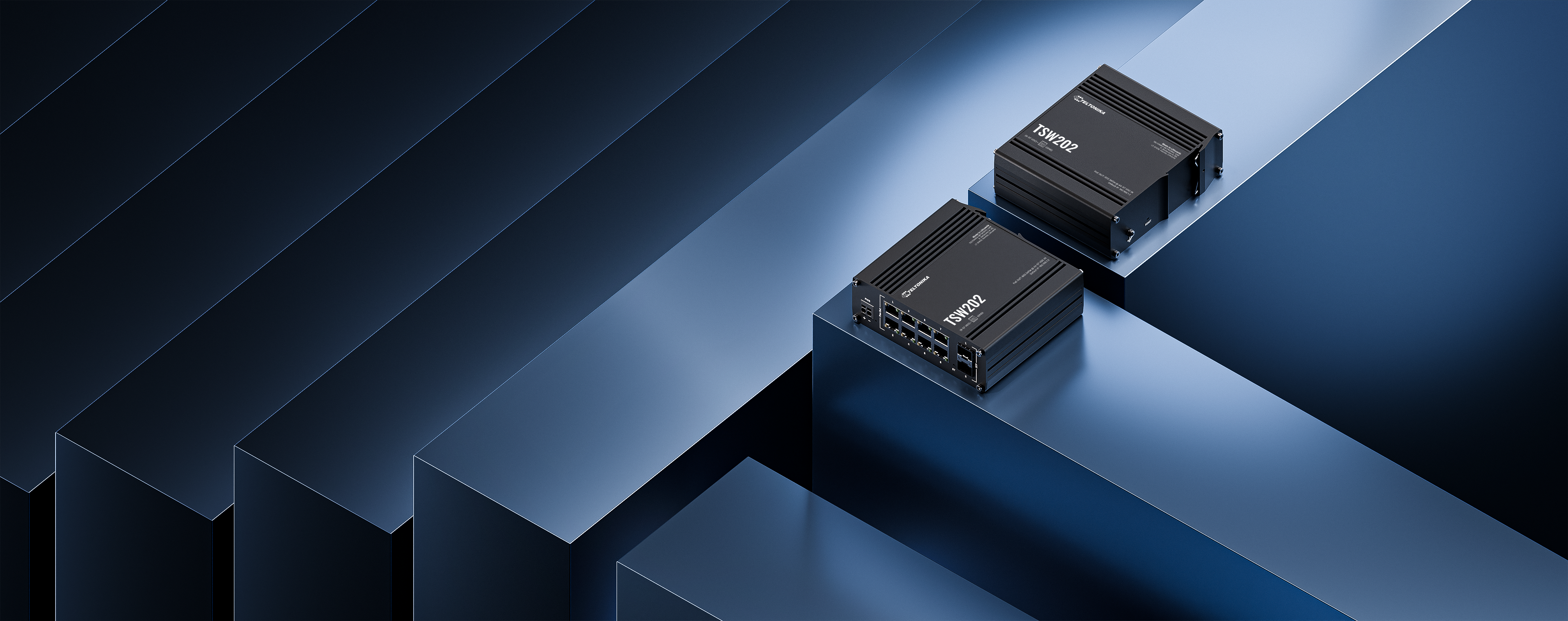

TSW202

MPNTSW202
OSLinux
Weight1.3 lb

Specifications 71 normalized

Memory & storage
Memory
128 MB, DDR3
FLASH storage
16 MB serial flash
Connectivity
Maximum Ethernet cable length
100 m
Ether Net/IP
Yes
Networking
Surge at signal port (Ethernet): 1kV Line to Ground, 1.2/50us, IEC 61000-4-5
PoE Max Power per Port (at PSE)
30 W
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
PoE+ ports
Port 1 - 8
Network Management
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
Port aggregation
802.3ad (LACP)
Port Settings
Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation:
Physical Interfaces: Fibre
2 x SFP ports
Power & battery
Total PoE Power Budget (at PSE)
240 W
Power Consumption
Idle: < 3 W / Max: 8 W / PoE Max: 248 W
Power
1 x 2-pin industrial DC power socket
Physical & build
Weight
610 g
Dimensions (W x H x D)
132 x 44.2 x 122.2 mm
MAC address table size
8K entries
Casing material
Anodised aluminium housing and panels
Operating system & software
Operating System
TSWOS (OpenWrt based Linux OS)
Warranty & support
MAC filtering support
Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected
Supported languages
Busybox shell, Lua, C, C++
Jumbo frame support
10000 bytes
Other
ETH
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3z, 802.3ad
Profinet
Profinet Class B conformance (available with optional order code)
PoE standards
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Batch 15 and all batches from Batch 17 onward)
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Batches 1–14 and Batch 16)
PoE protection
Short-circuit and overload protection
SNMP V2, V3
Yes
LLDP
Yes
MRP
MRP client role, MRP manager role
L2 features
Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Multicast
IGMP snooping, multicast querier support
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
Routing
Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP)
Authentication
PAM — preshared key, Radius & TACACS+, IP & login attempts block
QOS
Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method
SP/WFQ/WRR
Bandwidth control
Rate limiting, storm control
Traffic Shaper
Port-based shaping
Tools
Cable diagnostic, ping, traceroute, nslookup
Ping reboot
Capability to restart PoE in a specific port
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Development tools
SDK package with build environment provided
Bandwidth (Non-blocking)
20 Gbps
Forwarding rate
14.88 Mpps
Packet buffer
512 KB
Input voltage range
7 – 57 VDC, reverse polarity protection: -80Vmax
PoE-Out input voltage range
44 – 57 VDC
Status LEDs
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Reset
Software reset button
Other
1 x Grounding screw
Mounting options
Integrated DIN rail bracket
wall mount and flat surface (additional kit needed)
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Regulatory
CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE, SDPPI (POSTEL), JATE, Kenya, ICASA, Giteki`, UL Safety, MTCTE
Standards
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
CS
EN 61000-4-6:2014
DIP
EN 61000-4-11:2020
Safety: Standards
CE : EN IEC 62368-1:2020 + A11:2020
RCM : AS/NZS 62368.1:2022
CB : IEC 62368-1:2018
Safety (Ordinary Locations): Standards
UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

I/O Ports 3

  • ETH: Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
  • Fibre: 2 x SFP ports
  • Ethernet: Surge at signal port (Ethernet): 1kV Line to Ground, 1.2/50us, IEC 61000-4-5
