Catalog›Network Switches›Teltonika Networks
Teltonika Networks

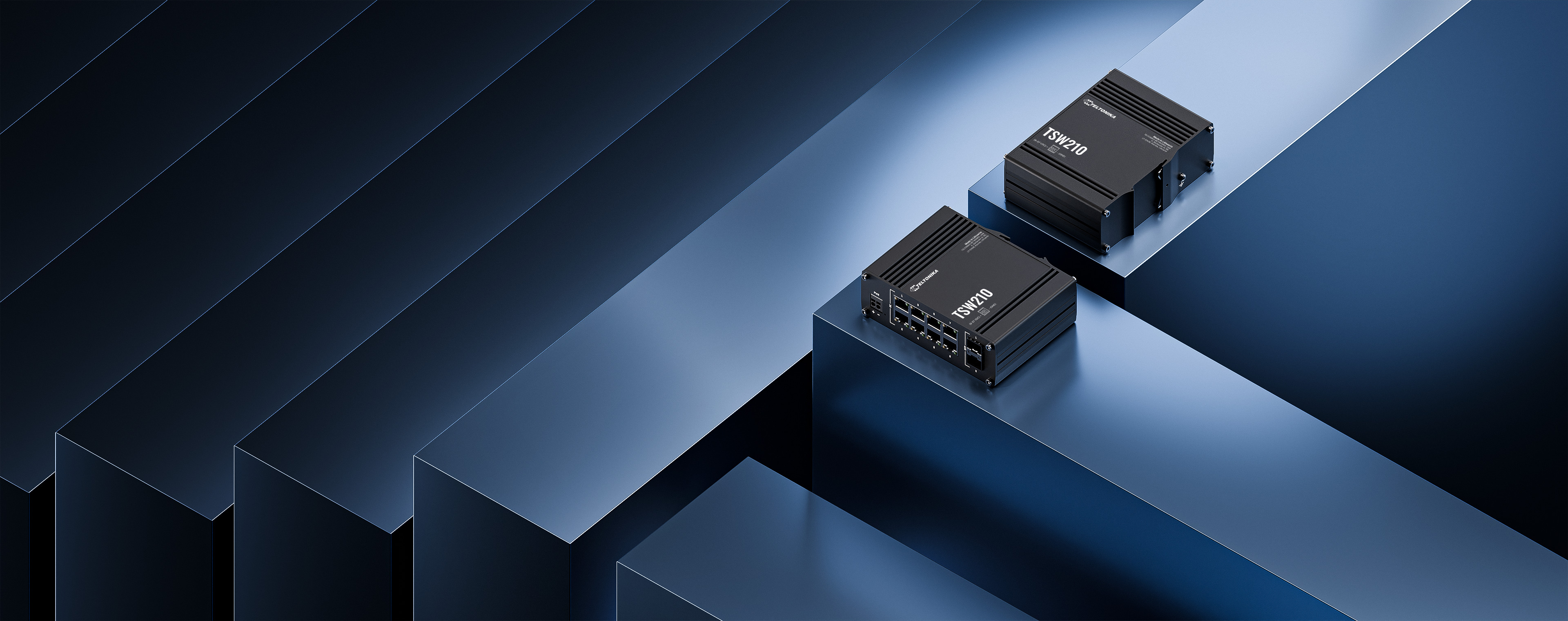

TSW210

MPNTSW210
Weight1.1 lb

Specifications 31 normalized

Connectivity
Networking
8 x RJ45 ports, 10/100/1000 Mbps
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
Physical Interfaces: Fibre
2 x SFP ports
Power & battery
Power Consumption
Idle: ~1.03 W / Max: 3.71 W
Power
1 x 2-pin industrial DC power socket
Physical & build
Weight
500 g
Dimensions (W x H x D)
132 x 44.2 x 95.1 mm
MAC address table size
2K entries
Casing material
Anodised aluminium housing and panels
Warranty & support
Jumbo frame support
9216 bytes
Other
ETH
8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Profinet
Profinet Class A conformance (available with optional order code)
Bandwidth (Non-blocking)
20 Gbps
Packer buffer
128 KB
Input voltage range
7 – 57 VDC, reverse polarity protection: -80Vmax
Status LEDs
1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs
Other
1 x Grounding screw
Mounting
Integrated DIN rail bracket
wall mount and flat surface (additional kit needed)
Operating Temperature
-40 °C to 75 °C
Operating Humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
Certifications
CE, UKCA, CITC, ANRT, FCC, IC, RCM, CB, EAC, Kenya, NOM, UL/CSA, Japan, SDPPI (POSTEL), MTCTE
Standards
EN 55032:2015 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019
ESD
EN 61000-4-2:2009
EFT
EN 61000-4-4:2012
CS
EN 61000-4-6:2014
DIP
EN IEC 61000-4-11:2020
Safety: Standards
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
Safety (Hazardous Locations): Standards
UL 62368-1
CAN/CSA C22.2 No. 62368-1-19

I/O Ports 3

  • ETH: 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
  • Fibre: 2 x SFP ports
  • Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps
