Catalog›Network Switches›Teltonika Networks
Teltonika Networks

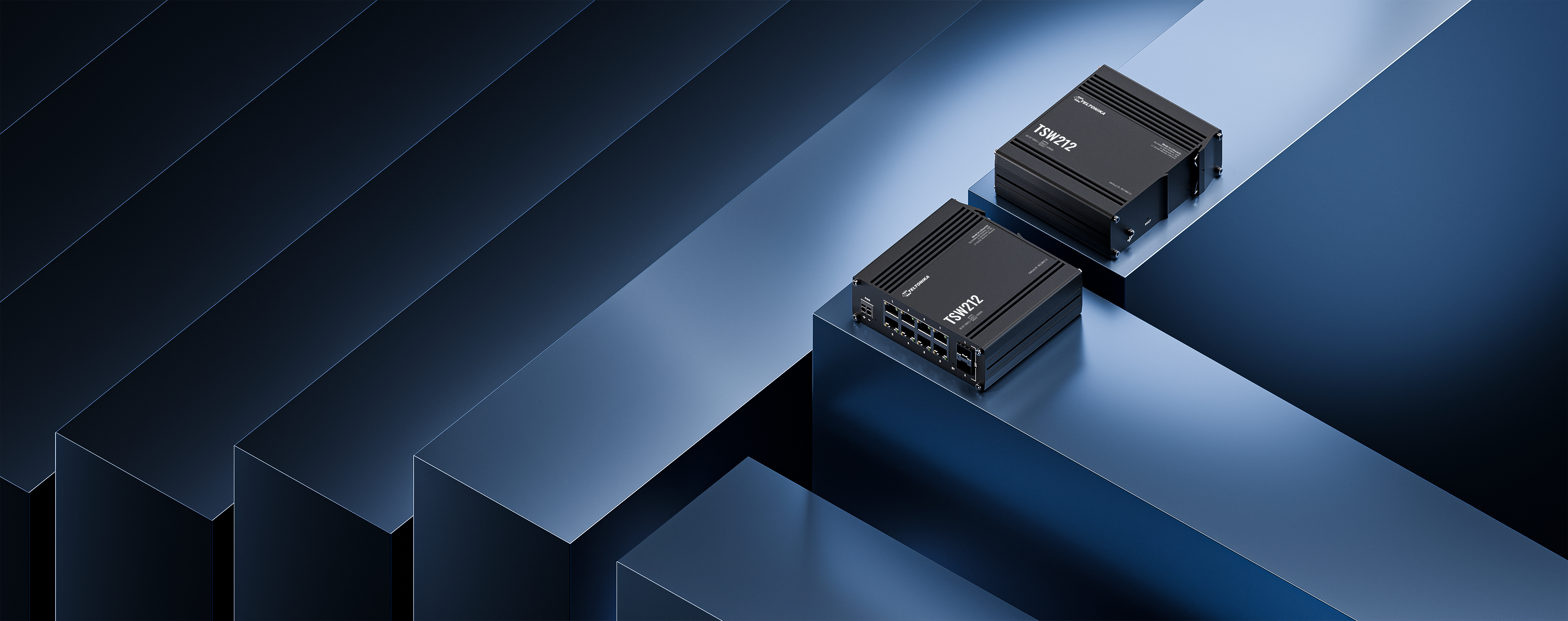

TSW212

MPNTSW212
Memory128 MB DDR3
Storage16 MB
OSLinux
Weight1.4 lb

Specifications 58 normalized

Memory & storage
Memory
128 MB, DDR3
FLASH storage
16 MB serial flash
Connectivity
Ether Net/IP
Yes
Networking
8 x RJ45 ports, 10/100/1000 Mbps
Network Management
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
Port aggregation
802.3ad (LACP)
Port Settings
Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation:
Physical Interfaces: Fibre
2 x SFP ports
Power & battery
Power Consumption
Idle: < 2.5 W / Max: 6 W
Power
1 x 2-pin industrial DC power socket
Physical & build
Weight
615 g
Dimensions (W x H x D)
132 x 44.2 x 122.2 mm
MAC address table size
8K entries
Casing material
Anodised aluminium housing and panels
Operating system & software
Operating System
TSWOS (OpenWrt based Linux OS)
Warranty & support
MAC filtering support
Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected
Supported modes
Managed Device
Supported languages
Busybox shell, Lua, C, C++
Jumbo frame support
10000 bytes
Other
ETH
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Profinet
Profinet Class B conformance (available with optional order code)
SNMP V2, V3
Yes
LLDP
Yes
MRP
MRP client role, MRP manager role
L2 features
Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Multicast
IGMP snooping, multicast querier support
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
Routing
Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP)
Authentication
PAM — preshared key, Radius & TACACS+, IP & login attempts block
QOS
Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method
SP/WFQ/WRR
Bandwidth control
Rate limiting, storm control
Traffic Shaper
Port-based shaping
Tools
Cable diagnostic, ping, traceroute, nslookup
Functionalities
FOTA updates, device status reporting, automatic reboot and port restart via ping/wget health checks, centralized VLAN and port configuration
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
Firmware/Configuration: WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
Firmware/Configuration: FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Development tools
SDK package with build environment provided
Bandwidth (Non-blocking)
20 Gbps
Forwarding rate
14.88 Mpps
Packet buffer
512 KB
Input voltage range
7 – 57 VDC, reverse polarity protection: -80Vmax
Status LEDs
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Reset
Software reset button
Other
1 x Grounding screw
Mounting
Integrated DIN rail bracket
wall mount and flat surface (additional kit needed)
Operating Temperature
-40 °C to 75 °C
Operating Humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30

I/O Ports 3

  • ETH: Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
  • Fibre: 2 x SFP ports
  • Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps
