teltonika

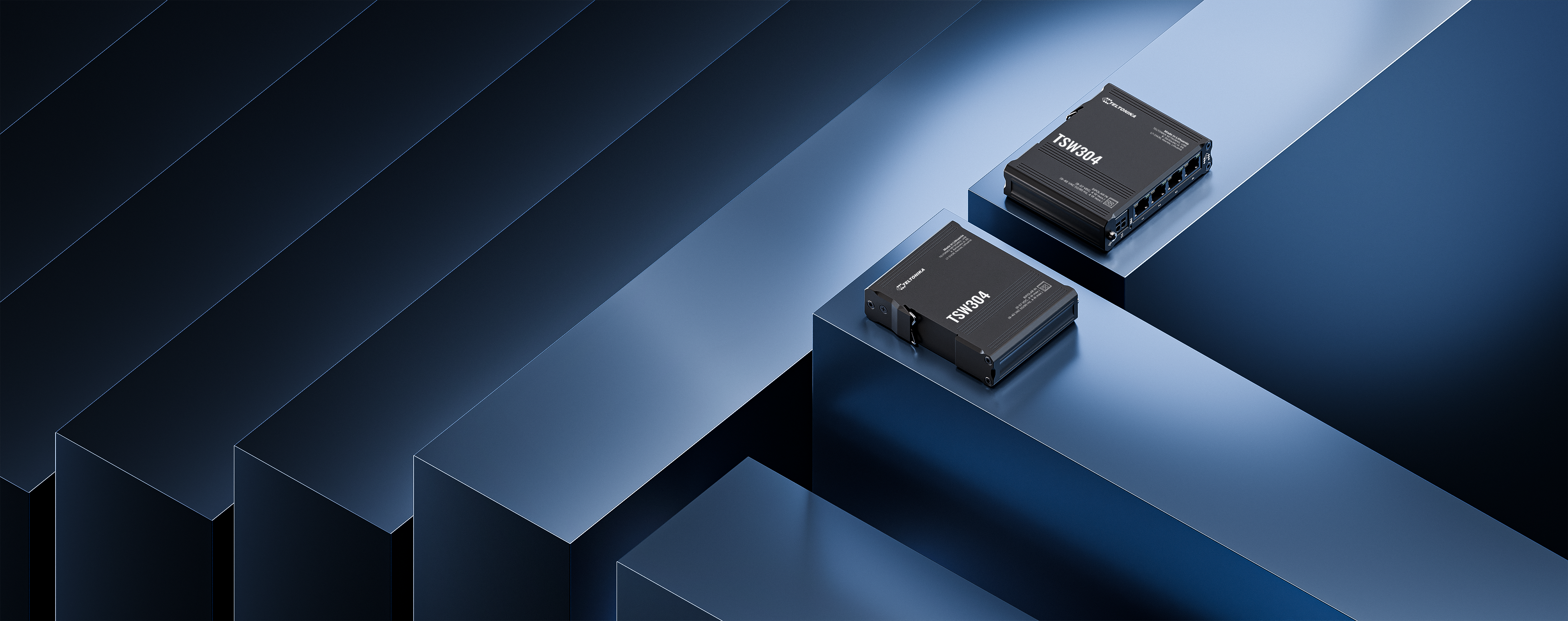

TSW304

MPNTSW304
Weight0.46 lb

Specifications 23 normalized

Connectivity
Networking
4 x RJ45 ports, 10/100/1000 Mbps
Power & battery
Power Consumption
Idle: 0.26 W / Max: 1.44 W
Power
1 x 2-pin industrial DC power socket
Physical & build
Weight
210 g
Dimensions (W x H x D)
102 x 25 x 81.5 mm
MAC address table size
2K entries
Casing material
Anodised aluminium housing and panels
Warranty & support
Jumbo frame support
9216 bytes
Other
ETH
4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Profinet
Profinet Class A conformance (available with optional order code)
Bandwidth (Non-blocking)
8 Gbps
Packer buffer
128 KB
Input voltage range
7 - 57 VDC
9 - 40 VAC
PoE (passive)
Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Status LEDs
8 x ETH status LEDs, 1 x Power LED
Other
1 x Grounding screw
Mounting options
Integrated DIN rail bracket
wall mount and flat surface (additional kit needed)
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Regulatory
CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
Standards
EN IEC 62368-1:2020+A11:2020
IEC 60068-2-6:2007 Environmental testing - Part 2-6
IEC 60068-2-27:2008 Environmental testing - Part 2-27
IEC 60068-2-31:2008 Environmental testing - Part 2-31

I/O Ports 2

  • ETH: 4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
  • Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps
