Plug PCs — operator console

← Back to catalog
Lenovo

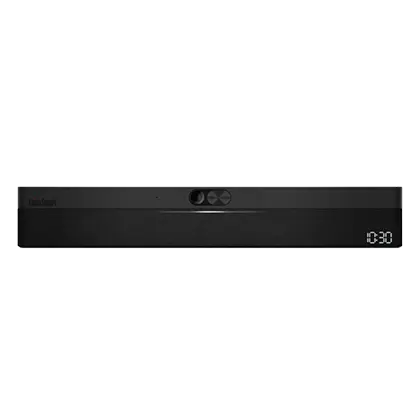

ThinkSmart One Pro + IP Controller for Teams

Processor11 th Generation Intel Core i5-1145G7E with vPro
Memory16 GB
Storage256 GB
GraphicsIntel Iris X e Graphics
Display10.1″ HD
OSWin 11 IoT Enterprise GAC

Specifications 22 normalized

Processor
Processor
11 th Generation Intel Core i5-1145G7E Processor with vPro (1.50 GHz, up to 4.10 GHz with Turbo Boost, 4 Cores, 8 Threads, 8 MB Cache)
Memory & storage
Memory
16 GB DDR4 (3200Mhz), dual channel
Storage
256 GB PCIe Gen 4 SSD
Graphics
Graphics
Intel Iris X e Graphics
Display
Display
10.1" HD (1280 x 800) 10-point touchscreen, 16:10 aspect ratio, &lt
360nit, antiglare, antifingerprint
Connectivity
Ports / Slots
HDMI 2.1 in (supports resolution up to 4K@60 Hz) 2x HDMI 2.1 out (supports resolution up to 4K@60 Hz) USB-A (USB 5Gbps) USB-A (hi-speed USB) USB-C (USB 5Gbps) USB-C (hi-speed USB) 2 x Ethernet (RJ45) USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments
actual speeds will vary and may be less than expected.
Wireless
WLAN AX210 802.11 AX (2x2) Bluetooth 5.0
Ports/Slots
HDMI 2.1 out (supports resolution up to 4K@60 Hz) USB-B (hi-speed USB) Ethernet (RJ45)
Camera & audio
Audio
2 x speakers 85+ / -3dB sound pressure level (SPL) 15W rated power 48kHz speaker sampling rate 30hms impedance
Microphones
8 x mics 6m / 19.69ft pickup range -35dBFS sensitivity
Camera
FHD 1080p 125° diagonal, 100° horizontal & 68° vertical field-of-view
Physical & build
Dimensions (H x W x D)
89 mm x 700 mm x 110 mm / 3.50" x 27.56" x 4.33"
Weight
Starting at 3.55 kg / 7.82 lbs
Color
Black
Material
90% recycled materials used in packaging cushions 59% post-consumer content (PCC) recycled plastic used in speaker grille cloth 100% plastic-free, recyclable packaging
Operating system & software
Operating System
Windows 11 IoT Enterprise GAC
Preloaded Software
ThinkSmart Manager with one year of ThinkSmart Manager Premium included Microsoft Teams Rooms
Security
Security
Trusted Platform Module (TPM) 2.0 Integrated cable management Kensington Security Slot
Warranty & support
Warranty
3-year Lenovo Premier Support 1-year ThinkSmart Collaboration Professional Services – Deploy & Maintain
Other
What’s in the Box
Lenovo ThinkSmart One Pro for Microsoft Teams Rooms Lenovo IP Controller Wall mount bracket & screws for ThinkSmart One Pro for Microsoft Teams Rooms 135W USB-C adapter Lenovo Link Box Power adapter for Lenovo Link Box Ethernet cable (RJ45, Cat5e, 5m) 2 x HDMI cables (2m cable for PC screen sharing, 1m cable for connecting host PC & Link) USB-A to USB-B cable (1m for connecting host PC & Lenovo Link Box) Quick Start Guide
Certifications / Registries
Forest Stewardship Council (FSC) Waste Electrical & Electronic Equipment
More Information
Full spec list for part numbers starting with 12BW available here *Not all specs available on lenovo.com

I/O Ports 20

  • Volume button
  • Headphone / mic combo
  • 2 x Ethernet (RJ45)
  • HDMI® 2.1 in (supports resolution up to 4K@60Hz)
  • 2 x HDMI® 2.1 out (supports resolution up to 4K@60Hz)
  • Power in
  • USB-A (USB 5Gbps)
  • USB-A (hi-speed USB)
  • USB-C® (USB 5Gbps)
  • Kensington Security Slot™
  • USB-C® (hi-speed USB)
  • Kensington Security Slot™
  • Reset button
  • Ethernet (RJ45)
  • USB-C® (hi-speed USB)
  • HDMI® 2.1 in (supports resolution up to 4K@60Hz)
  • HDMI® 2.1 out (supports resolution up to 4K@60Hz)
  • USB-B (hi-speed USB)
  • Power in
  • Ethernet (RJ45)
